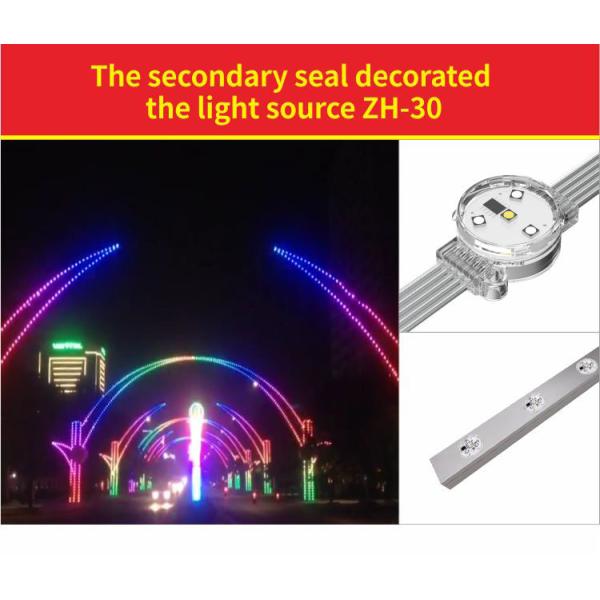

30 Two Packaging Points Light -Thicker Outdoor Waterproof Point Light
Product features:
Fixing method: Fix the lamp body in the required position by screws or glue.
Cable connection: Connect power cables and signal cables according to the installation drawings, and take waterproof treatment.
Note: Ensure that the power supply matches the luminaire to prevent damage caused by voltage mismatch.
Maintenance: Check the status of the circuit and lamp body regularly, and replace the damaged parts in time.
| Basic product parameters | Product protection parameter |
| Product model | DZ103-Ⅱ-RGBW | Waterproof grade | IP67 |
| Product weight | About22g | Salt spray test | Salt spray resistance |
| Shell material | PVC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 6CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | | |
| Wire core | 2x1mm²+3x0.35mm² | | |
| Wire material | PVC | | |
| PCB material | FR-4 Fiberglass board | | |
| Product optical parameters | Electrical parameters of the product |
| LED color | RGB+W | Operating voltage | DC12V |
| Luminous Angle | 120° | Rated power | 0.96W |
| Color resolution | 3*16bit | Supporting system |
| Lamp bead | SMD3535*4LED | Control system | DMX512 |
| Pixel point luminous flux | 34lm | Power supply system | DC12V Constant voltage |
| luminance | 12.6cd | | |
Applications:
In this sea of light, antique traditional buildings and modern high-rise buildings complement each other. Point light sources are cleverly embedded in eaves, window corners and Bridges, casting soft light and outlining the building, making the old building radiate new life
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
